      The Importance of a Sealed Snorkel System

      If you have fitted a snorkel to your GU Patrol, you have already taken a vital step in protecting your engine from dust ingestion and water damage. However, a snorkel is only as good as the integrity of the system behind it. Over time, vibration, heat cycling under the bonnet, and rough track work can compromise the seals between the snorkel head, the pillar, the inner guard, and the airbox. A leak in any of these areas defeats the purpose of the intake upgrade, potentially allowing dust or water into your engine. If you are regularly hitting river crossings or dry, dusty outback tracks, verifying that your intake is airtight is a critical maintenance task.

      The Technical Breakdown

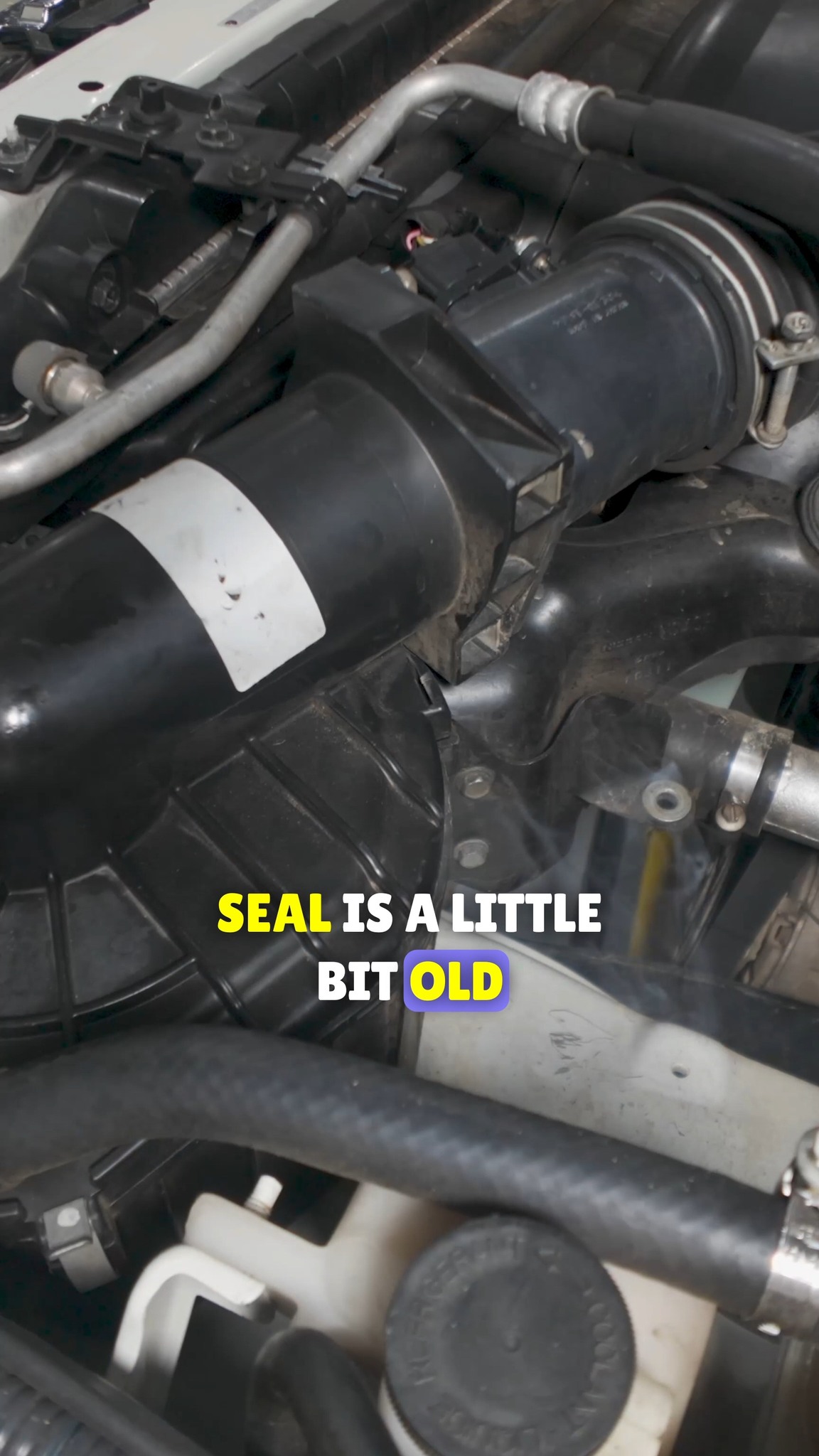

      The primary function of a snorkel is to move the intake point to a higher, cleaner location. In the GU Patrol, the factory airbox is often the weak point if the seals have perished or the plastic housing has warped from engine bay heat. Before you head off-road, it pays to understand the potential failure points:

      • Joint Sealing: Check the rubber bellows or silicone joiners between the inner guard and the airbox. These are prone to cracking or loosening under high engine vibration.
      • Airbox Integrity: Inspect the airbox lid clips and the foam seal around the filter housing. If the airbox is not pulling a vacuum when the intake is blocked, your system is not sealed.
      • Drain Valves: Many aftermarket airboxes feature a small rubber duck-bill drain valve at the bottom to allow water to escape. Ensure this is supple and not clogged with debris, or it will let dust in rather than letting water out.
      • Pillar Mounting: Ensure the snorkel body is bolted securely to the A-pillar. A loose snorkel puts unnecessary stress on the guard-mounted components, leading to cracked seals or body damage.

      Safety Disclaimer: Any work involving the air intake or engine bay components carries a risk of accidental damage. Ensure your engine is off and cool before inspecting intake components. If you are fabricating or modifying intake plumbing, ensure all connections are secure to prevent engine ingestion of loose debris or unfiltered air.

      The Patrolapart Solution

      When it comes to your intake, OEM components provide a known baseline for fitment, but high-performance driving—such as extended touring or towing—often benefits from upgraded, high-quality aftermarket solutions designed for better sealing and durability. At Patrolapart, we stock components engineered to handle the harsh vibration and thermal loads seen in the GU Patrol.

      Fitment varies significantly between Series 1 through to Series 4 and beyond, particularly regarding airbox shape and guard entry points. Always verify your specific model year and engine type before finalizing your selection. We recommend confirming your part requirements against your VIN to ensure precise fitment.

      If you find that your intake system is complex to seal or requires fabrication to correct poor fitment from previous modifications, it is worth having a professional inspect the integrity of your induction path to avoid terminal engine damage.

      Summary

      Maintaining a sealed snorkel system is a straightforward but essential part of vehicle preparation. A quick visual inspection of your seals and airbox before a trip can save you from a major mechanical headache later on. Ensure your clips are tight, your gaskets are pliable, and your joints are free from cracks. If you are unsure about the state of your intake system or require assistance with high-risk component installation, our team is here to help you get the right parts for the job.

      For expert advice or assistance with complex component installation, please get in touch with our team to discuss your requirements.

      Original Source: Facebook Post

    • Protecting Your GU Patrol Clutch Slave Cylinder from Heat Soak

      Protecting Your GU Patrol Clutch Slave Cylinder from Heat Soak

      When you are pushing a GQ/GU Patrol through tight tracks or long-distance towing, thermal management is everything. A common point of failure for manual GQ/GU Patrols is the clutch slave cylinder, which sits dangerously close to the exhaust manifold and dump pipe. Over time, the constant soak from exhaust heat breaks down the internal seals and forces the hydraulic fluid to boil. This leads to that dreaded soft or spongy clutch pedal feel exactly when you need your drive system to be at its most reliable. We have seen enough toasted seals in the workshop to know that preventing this heat transfer is far more effective than constantly bleeding your hydraulic system.

      The Technical Breakdown: Why Heat is the Enemy

      The transmission tunnel area on a GU Patrol is a high-heat zone, especially in vehicles fitted with aftermarket dump pipes or those consistently under load. When you increase the duty cycle of your engine—whether through towing a camper or low-range crawling on a hot day—that heat radiates directly into the clutch slave cylinder assembly. Genuine Nissan OEM components are built to factory specifications, but they were never designed to withstand the extended thermal stress of a modified 4×4 setup. When the fluid boils, you lose disengagement pressure, making it difficult to find gears and accelerating wear on your clutch and flywheel components.

      • Thermal Degradation: Prolonged exposure to heat causes rubber piston seals to harden and fail prematurely.
      • Fluid Boiling: High temperatures reduce the effective boiling point of brake fluid, leading to air pockets and a spongy pedal.
      • Series-Specific Variations: While the architecture of the clutch system is similar across the GQ and GU range, this will not fit the RD28 & RB30 variants. Always confirm your specific engine and transmission configuration before ordering.

      Safety Disclaimer: Working on the clutch hydraulic system involves handling brake/clutch fluid, which is corrosive to paint and harmful to skin. Ensure you have the vehicle safely supported on jack stands—never rely on a jack alone when working under a vehicle. If you are uncomfortable with hydraulic bleeding procedures or transmission-related work, consult a qualified mechanic.

      The Patrolapart Solution

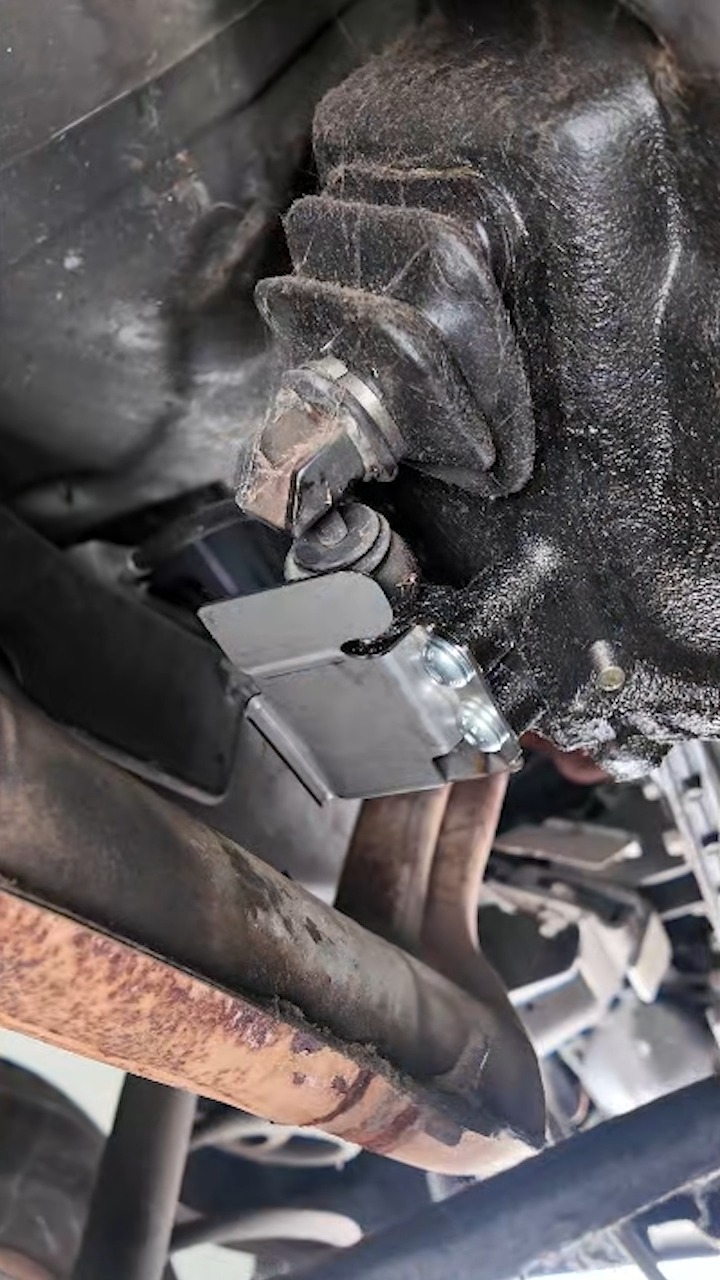

      We have developed an aftermarket clutch slave cylinder heat shield specifically designed to bridge the gap between OEM limitations and real-world off-road demands. Unlike generic shields that may trap heat or interfere with mounting points, our shield provides a dedicated thermal barrier between the exhaust and the hydraulic cylinder. By reflecting radiant heat, we keep the fluid temperatures within the operational range, extending the life of your seals and ensuring consistent pedal feel under heavy load.

      This is a practical, long-term solution for any GQ/GU Patrol owner who spends time on the trails or uses their vehicle for towing. It is a straightforward addition that eliminates a known weak point in the drivetrain. Check the requirements for your specific model series and ensure all fasteners are correctly torqued during installation to prevent vibration-induced movement.

      • Engineered Protection: Custom-shaped to shield the slave cylinder from direct radiant heat.
      • Durability Focused: Constructed to withstand the harsh vibrations and thermal cycling of an off-road environment.
      • Compatibility: Designed for GU and GQ platforms; however, fitment varies by model and series. Please verify your VIN and transmission type to ensure compatibility.
      • Proactive Maintenance: Best installed alongside fresh fluid to ensure your clutch and drivetrain components are protected from the start.

      Summary

      Don’t wait for your pedal to hit the floor on the tracks to address heat soak. Managing your vehicle’s thermal output is part of a comprehensive approach to reliability. By installing a high-quality heat shield, you are protecting your hydraulic system and ensuring your Patrol remains capable when the going gets tough. We recommend verifying your specific setup before purchase to ensure a correct fit.

      Explore our full range of drivetrain protection and components to keep your Patrol running at its best.

      Shop Clutch Slave Cylinder Heat Shields at Patrolapart

      Original Source: Facebook Post

    • Upgrading your GQ Y60 Interior Mirror Base

      Upgrading your GQ Y60 Interior Mirror Base

      The GQ Y60 has earned its reputation as a workhorse, but after decades of exposure to harsh Australian sun and constant vibration, interior components are inevitably showing their age. One of the most common points of failure is the interior rear-view mirror base. The factory plastic mount becomes brittle over time, leading to a loose mirror that vibrates on corrugated roads or, worse, snaps entirely, leaving you without a rear view.

      The Technical Breakdown

      The failure of the factory mirror base is a classic example of material fatigue. While OEM plastic served its purpose for the original design life of the vehicle, it simply wasn’t engineered to handle the thermal cycling and high-frequency vibration inherent in a dedicated 4×4. When the base fails, it doesn’t just create an annoyance; it compromises your visibility, which is a safety critical factor when towing or navigating tight tracks.

      • Material Fatigue: UV exposure and extreme cabin temperatures cause the original plastic to lose its structural integrity.
      • Vibration Tolerance: The increased load of off-road driving accelerates wear on the mounting points.

      The Patrolapart Solution

      At Patrolapart, we focus on engineering solutions that solve recurring problems. Our Billet Interior Mirror Base is CNC-machined from high-grade aluminium. Unlike the factory component, this piece is designed to withstand the vibration and temperature fluctuations of a well-used Patrol. By moving to a metal construction, you remove the risk of brittle failure and gain a more rigid mounting point for your mirror, which keeps your field of vision steady on even the roughest tracks.

      • Material Upgrade: CNC-machined aluminium provides superior durability compared to the original plastic.
      • Direct-Fit: Engineered to match factory dimensions for a straightforward, bolt-on installation.
      • Reliability: Designed to eliminate the vibration and “droop” often seen in aged GQ mirror mounts.

      Summary

      Replacing a failed plastic component with a permanent, billet-aluminium upgrade is a practical way to improve your cabin’s reliability and fix that annoying mirror wobble for good. It’s a simple, effective change that ensures your interior is as ready for the bush as the rest of the drivetrain.

      Check out our range of interior accessories and mounting hardware to keep your cabin in top shape:

      Click here to view our Billet Interior Mirror Base for the GQ Y60.

      Original Source: Facebook Post

    • Combating GQ Patrol Rust: Addressing Structural Integrity

      Combating GQ Patrol Rust: Addressing Structural Integrity

      The GQ Patrol is a legend of the Australian bush, but years of exposure to the elements, salt air, and heavy corrugations eventually take their toll on the bodywork. Rust isn’t just a cosmetic issue; it compromises the structural integrity of the roof and pillars, which is a major concern for those running roof racks or touring with a heavy load. When your body panels are compromised, you aren’t just looking at paint touch-ups—you are looking at essential structural maintenance.

      The Technical Breakdown: Why Repair Panels Matter

      When dealing with roof or pillar rust, you are working on the primary structure of the vehicle cabin. Unlike simple bolt-on accessories, body repairs require a high level of technical competency in cutting, welding, and alignment. If you are inexperienced with automotive panel work or welding, we strongly recommend consulting a professional body shop. Structural repairs must be performed correctly to ensure the vehicle remains safe on and off the road.

      Understanding the difference between patch-up work and proper repair panels is critical. Poor quality repairs often fail due to mismatched steel gauges or improper corrosion protection. Our repair panels are engineered to match the original contours and thicknesses of the GQ, ensuring that once properly welded and sealed, the repair integrates with the existing structure rather than acting as a weak point.

      • Structural Integrity: Repairs must maintain the strength of the original pillars to support roof-mounted loads.
      • Fitment Variance: Body panels can vary between SWB, LWB and Hi-Roof GQ models. Always verify your build plate and VIN before committing to structural cuts.
      • Safety First: DIY body repair involves angle grinders, welders, and hazardous dust. Always use appropriate PPE, including eye protection, respiratory masks, and fire-resistant clothing. If you are unsure of your welding capability, have a professional perform the work to ensure the structural safety of the cabin.

      The Patrolapart Solution

      We are currently clearing our excess stock of GQ rust repair panels, providing a cost-effective way to source the steel you need for a permanent fix. Using quality repair panels is significantly more reliable than attempting to bog up large areas of rust, which will inevitably crack and fail under the stress of touring and off-road vibration. By cutting out the cancer and welding in purpose-built panels, you are restoring the vehicle to its original factory strength.

      Whether you are prepping for a full restoration or just tackling isolated corrosion, securing the right panels now is the most practical path forward. Check the fitment specifications for your specific year and model series before ordering to ensure the correct geometry for your repair.

      • Range: Comprehensive selection of roof and pillar repair sections.
      • Durability: Engineered for weld-through performance and long-term rust resistance.
      • Value: Take advantage of our current one-time low pricing while stocks last.

      Summary

      Rust management is a core part of owning a classic 4×4 like the GQ. Don’t wait for structural degradation to impact your trip—address the issues while the parts are available and the repair is manageable. Remember, a properly repaired body is the foundation for every other upgrade you make, from your suspension setup to your drivetrain reliability.

      Browse our available range of repair panels and secure the components you need for your GQ project.

      Click here to view our current stock of GQ Repair Panels.
